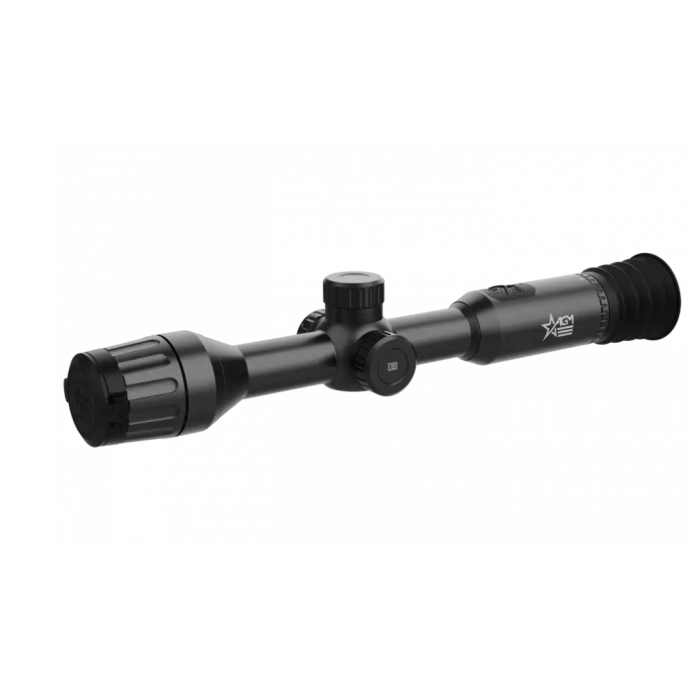

AGM Adder TS35-640 Thermal Imaging Rifle Scope 12um, 640x512 (50 Hz), 35 mm lens

Model no: 3142555005DTL1
"Coming soon" - We are taking backorders.


Not exportable outside of the USA. See Export Policy

$3,995.00


Not exportable outside of the USA. See Export Policy

AGM Adder TS35-640  Thermal Imaging Rifle Scope 12um, 640x512 (50 Hz), 35 mm lens

AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.

Riflescope has 384×288 or 640×512 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available. AGM Adder scope has the ability to work in conjunction with an external laser rangefinder. Data transfer between the optional rangefinder and the scope is carried out via Bluetooth connection.

The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.



Features:

  • 12μm high-sensitivity detector
  • 640×512 resolution
  • Head- or helmet-mountable for hands-free usage
  • Compact, sturdy design
  • High-resolution OLED display
  • Multiple thermal image palettes
  • Device supports up to 8× digital zoom
  • Powered by one CR123A/RCR123 or 18650 Lithium battery
  • Up to 5 hours continuous running
  • Digital compass and inclinometer
  • Type-C interface
  • Limited 3-year warranty

AGM Adder TS35-640 Thermal Imaging Rifle Scope 12um, 640x512 (50 Hz), 35 mm lens description

AGM Adder TS35-640  Thermal Imaging Rifle Scope 12um, 640x512 (50 Hz), 35 mm lens

AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.

Riflescope has 384×288 or 640×512 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available. AGM Adder scope has the ability to work in conjunction with an external laser rangefinder. Data transfer between the optional rangefinder and the scope is carried out via Bluetooth connection.

The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.



Features:

  • 12μm high-sensitivity detector
  • 640×512 resolution
  • Head- or helmet-mountable for hands-free usage
  • Compact, sturdy design
  • High-resolution OLED display
  • Multiple thermal image palettes
  • Device supports up to 8× digital zoom
  • Powered by one CR123A/RCR123 or 18650 Lithium battery
  • Up to 5 hours continuous running
  • Digital compass and inclinometer
  • Type-C interface
  • Limited 3-year warranty

Technical Specifications

Palettes Black Hot, White Hot, Red Hot, Fusion
Reticle 5 types, 4 colors, on/off
Boresight Adjustment Digital Controlled
Boresight Increment 0.22 mil / 0.73 MOA
Distance Measurement Yes (Stadiametric); Optional Laser Rangefinder
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Detector type 12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)
Standby Mode Yes
Resolution 640 × 512
Detection Range 1800 m/yd
Snapshot Yes
Lens system 35 mm; F/1.0
Optical magnification 2× - 16×
Field of view (H × X) 12.3° × 9.9°
Digital zoom 1×, 2×, 4×, 8×
Diopter adjustment range -5 to +5 dpt
Eye relief ≥ 60 mm
Storage 64 GB EMMC
Battery Type Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery
Wi-Fi Yes
CVBS Output Yes (via USB)
Battery Life (Operating) Up to 12 hr
Power supply 5 VDC/2 A, USB Type-C Supports QC3.0
Operating Temperature Range -30°C to +55°C (-22°F to +131°F)
Degree of Protection IP67
Weight 890 g ( 1.96 lb)
Overall Dimensions 407 × 78× 76 mm (16.0 × 3.1 × 3.0 in)
