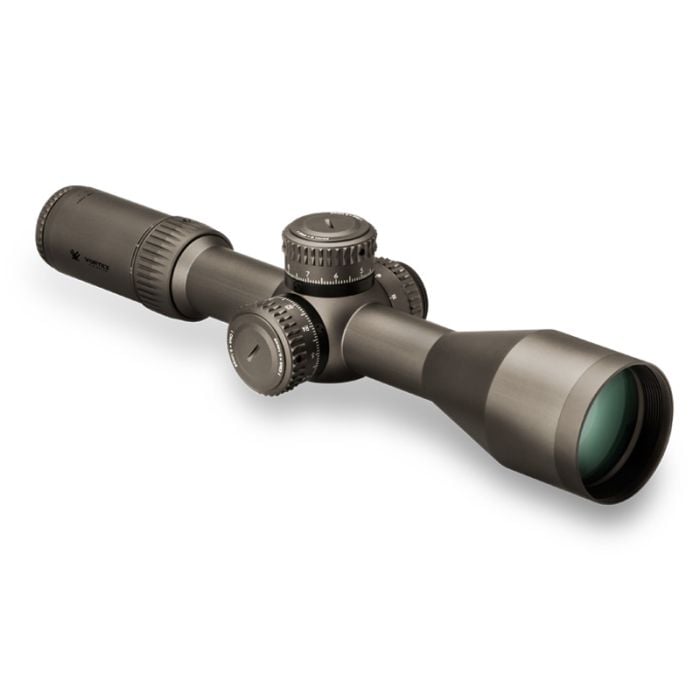

Vortex Razor HD Gen II 4.5-27x56 Riflescope EBR-7C Reticle MRAD Turrets

Model no: RZR-42708


Not exportable outside of the USA. See Export Policy

$2,899.99


Not exportable outside of the USA. See Export Policy

VORTEX RAZOR HD GEN II 4.5-27X56 RIFLESCOPE EBR-7C MRAD

The Gen II Vortex Razor riflescopes are designed for advanced precision shooting in extreme conditions. Optically indexed lenses optimize image sharpness and brightness. The Vortex Razor is made of a single block of aircraft-grade aluminum for strength, maximum alignment and improved internal adjustment. The ArmorTek coating protects Razor scope lenses from dirt and scratches. The Razor HD series offers top performance and maximum durability in all situations.

EBR-7C RETICLE (MRAD)

The Vortex EBR-7C is a hashmarked ranging reticle using MRAD-based subtension lines for ranging, holdover and windage corrections.

Vortex Razor HD Gen II 4.5-27x56 Riflescope EBR-7C Reticle MRAD Turrets description

Optical Features

APO System

Apochromatic objective lens system uses index-matched lenses to

correct color across the entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
HD Lens Elements

Premium HD (High Density) extra-low dispersion glass delivers the ultimate in

resolution and color fidelity, resulting in High Definition images.

XRPlus Fully Multi-Coated

Premium proprietary coatings deliver the highest level of light transmission with

multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.

Plasma Tech Cutting edge application process provides unparalleled coating durability and performance.
First Focal Plane Reticle

Scale of reticle remains in proportion to the zoomed image.

Constant subtensions allow accurate holdover and ranging at all magnifications.

Glass-etched Reticle

Allows for intricate reticle design.

Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle Provides precise aiming under low-light conditions.

Construction Features

Tube Size 34 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube

Maximizes alignment for improved accuracy and optimum visual performance,

as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof

O-ring seals prevent moisture, dust and debris from penetrating the riflescope

for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Stealth Shadow Finish

Highly durable hard-coat anodization provides a low-glare matte surface and helps

camouflage the shooter’s position.

ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
L-Tec Turrets

Integrated locking mechanism prevents accidental adjustments.

Turrets provide fast, accurate, easily read elevation and windage adjustments.

Patent pending.

External Rotation Indicator Provides quick visual and tactile reference of elevation turret’s rotational position.
Locking Illumination Locks illumination at preferred setting.
Side Focus

Adjustment located on left side of turret housing is easily accessible

from shooting position. Provides optimal image focus and parallax removal.

Internal mechanism design features

L-Tec Zero Stop

Prevents elevation turret from dialing below sight in range using rugged steel components.

Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—

even when setting the zero-stop position. Patent pending.

Micro Adjust Zero Setting Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
Friction Reduction System

Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a

hardened steel ring on the erector tube for steel-on-steel contact.

Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.

US Patent 7,958,665

Turret Screws

Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy

and treated with an advanced dry-film lubricant. Turret screw threads are precision machined

to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.

Erector Tube System

Precision-machined from premium brass alloy with anti-galling properties for strength and durability.

The chromium vanadium erector spring withstands compression, has high fatigue resistance

and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

Convenience features

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Locking Side Illumination

Easily accessible and lockable illumination dial is located on the left side of turret housing.

Features eleven intensity levels of illumination with off positions between each setting.

Technical Specifications

Magnification 4.5-27 x
Objective Lens Diameter 56 mm
Eye Relief 3.7 inches
Field of View 25.3-4.4 feet/100 yards
Tube Size 34 mm
Turret Style L-Tec
Adjustment Graduation .1 MRAD
Travel per Rotation 10 MRAD
Max Elevation Adjustment   33 MRAD
Max Windage Adjustment 14 MRAD
Parallax Setting 32 yards to infinity
Length 14.4 inches
Weight 48.5 ounces
